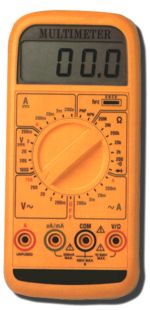

Digital Multimeter with RS-232: DMM-03680
  • Multifunction measurement : ACV, DCV, ACA, DCA,OHM, Continuity Beeper, Transistor hFE, Diode,
  • Meets IEC safety requirement.
  • High accuracy in measuring.
  • High internal impedance assures minimum measuring error.
  • Rotary function switch, easy operation.
  • Large size LCD display, easy reading.
  • LCD display, clear readout even in high ambient light environment.
  • Compact, light weight & excellent functionality.
  • Overload protection for any range.
  • Drop proof.
  • RS232 PC interface, photo couple isolated circuit.
  • When apply the optional software, then the meter can be used as data logging, data recorder & other intelligent applications.

General Specifications
Display
18 mm (0.7") LCD, 3 1/2 digits.
Measurement
& Functions
DCV, ACV, DCA, ACA, ohms, hFE, Continuity Beeper.
Polarity
Automatic Switching,
'-' indicates negative polarity.
Zero Adj.
Automatic.
Over-input
Display shows '1' or '-1'.
Sampling Time
Approx. 0.4 second.
RS232
Isolated (photo couple) RS232 serial data
Output
output, 9600 baud rate.
Operating
Temperature
0
