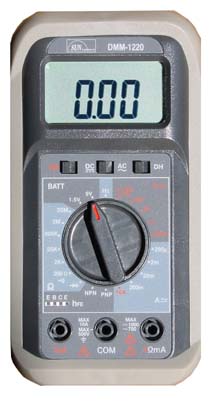

Digital Multimeter: DMM-1220

Features

  • 3-1/2 digit big LCD
  • Data Hold.
  • Perfect inner circuit protection with fuses and diodes
  • Continuity test (BUZZER) with resolution 0.1 W
  • AC / DC 10 ranges with 10A fuse protection
  • Transistor (hFE) and diode and battery test.
  • Autoranging frequency measurements 1~20Mhz with sensitivity 0.3Vrms.
  • Includes protective holster, test leads.

DC VOLTAGE

Ranges 5(200mV/2V/20V/200V/1000V)
Resolution 0.1mV/1mV/10mV/100mV/1V
Accuracy + (0.8%rdg+1dgt)
Protection 200mV : DC500V/AC350Vrms
2V~1000V : DC1000V/AC750Vrms
Impedance

10M W

DC CURRENT
Ranges 5(200
