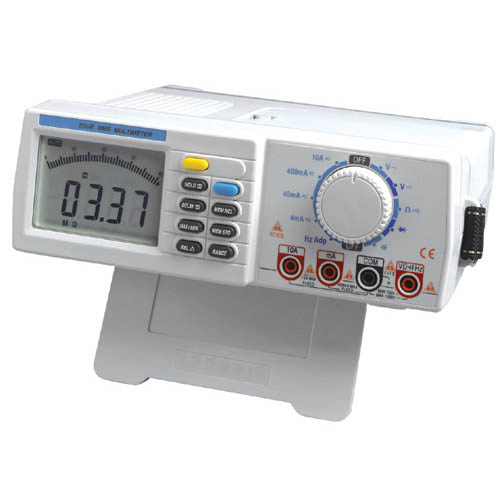

Bench Top Digital Multimeter: DMM-52803

Features

·     Conformance to CE CAT II 1000V

·      4000 Counts and 44 Bargraph Display

·      True RMS ACV and ACA

·      USB Interface

·       Relative Measurement

·        Auto/Manual Ranging

·        hFE Transistor(1-1000)

·        Diode, 2.5V

·        Continuity Buzzer (<50Ω)

·        MAX/MIN

·        Data Hold

·        Display Storage (Display can be memorized and Recallable)

·         Display Backlight

·        Power Supply - 220V / 110V AC (50 -60 Hz), 1 x 9V 6F22 Battery, 6 x 1.5V AA Batteries.

·        Product Size - 238 mm x 230 mm x 83 mm / 9.4" x 9.1" x 3.3"

·        Product Weight - 1500 g / 3.3 lb

·        Category - CE CAT II 1000V



Specifications

Function

Range

Accuracy

DCV

400mV/4V/40V/400V/1000V

± (0.3% + 2)

ACV

4V/40V/400V/750V

± (0.8% + 5)

DC Current

4mA/40mA/400mA

10A

± (0.8% + 5)

± (1.5% + 10)

AC Current

4mA/40mA/400mA

10A

± (1.5% + 5)

± (2% + 10)

Resistance

400Ω/4KΩ/40KΩ/400KΩ

4MΩ

40MΩ

± (0.5% + 3)

± (1% + 5)

± (1.5% + 10)

Capacitance

4nF/40nF/400nF/4µF/20µF

20µF~40µF

± (2% + 5)

± (5% + 5)

Frequency

100Hz/1kHz/10kHz//100kHz/600kHz

± (0.1% + 4)

 Measurement

<= 400mV (10 Counts per 1mV DC)

± (0.3% + 5)
