Digital Watt Meter: DWM-03060 gives a direct reading of WATT value on 3 1/2 digits LCD display, five range and functions give precision reading to the ACV, ACA, DCV, DCA and WATT.

Digital Watt Meters: | DWM-03060 | DWM-03093 | DWM-03095

Current Transformer: | CT-03300

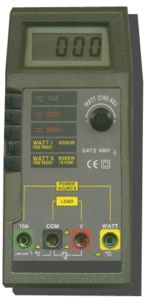

Handheld Digital Watt Meter: DWM-03060

The DIGITAL WATT METER give a direct reading of WATT value on 3 1/2 digits LCD display, five range and functions give precision reading to the ACV, ACA, DCV, DCA and WATT.

Accurate current, voltage, and true power measurement.
Digital display, easy and correct read-out.
Reads true power, not apparent power.
Use with single-phase power source.
Operated by a DC 9 Volt battery
Built-in low battery indicator
LCD display allow clear read-out even in bright ambient light condition.
Compact, lightweight, and excellent for operation.
Color-coded panel assures easy operation

General Specifications
Display		0.5" LCD ( Liquid Crystal Display ), Max. indication 1999.
Measurement		Watt ( true power ), DCV, ACV, DCA, ACA.
Polarity		Bipolar by automatic Switching , " - " indicates reverse polarity.
Zero Adjust		Watt : External adjustment for zero of the display, limited to +30 to -30 digits. ACV/DCV, ACA/DCA : Automatic adjustment.
Over-input		Indication of "1" or "-1".
Operating Temp.		0
