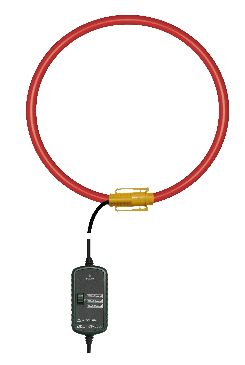

CT-03300 Series: Flexible Current Transformer

Flexible 3000 Amp current probe
Model : CT-03300-R ( red connector )
Model : CT-03300-Y ( yellow connector )
Model : CT-03300-B ( blue connector )
* Range : 30 A/300 A/3000 A.
* Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.
* Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).
* Flexible probe length : 600 mm ( 23.6 inch ). Flexible probe diameter : 15 mm.
* Optional current probes for DW-6093, DW-6095.
* When changing the new probe, the calibration procedures are not necessary to be executed.
* Output cable : 4 meter wire, use the banana plugs, durable and safety.
* Power supply is from the meter ( DW-6093, DW-6095 ), battery is not necessary.
* CP-3000R, CP-3000Y, CP-3000B : function is same with one another, but for identification purpose, the connector color is different
