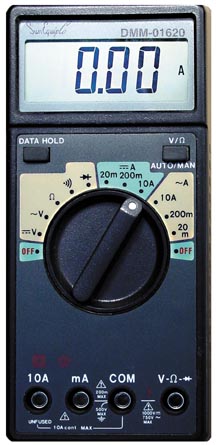

| Digital Multimeter: DMM-01620 |
Features:
Specifications:
| Display Counts | : 2000 | |
| DCV | ||
| Range: | :200mV, 2V, 200V, 1000V | |
| Resolution | :100mV, 1mV, 10mV, 100mV, 1V | |
| Accuracy | : 200mV+(0.5% rdg+4dgt), 2V ~ 1000V+(10.8%rgd+4dgt) | |
| ACV | ||
| Range: | : 2V, 20V, 200V,750V | |
| Resolution | : 1mV, 10mV, 100mV, 1V | |
| Accuracy | : 40Hz ~ 500 Hz, 2V ~ 750V+(1.0%rdg+8dgt) | |
| DCA | ||
| Range: | :20mA, 200mA, 20mA | |
| Resolution | : 10mA, 100mA,10mA | |
| Accuracy | :2m ~ 200 mA+(1.2%rdg+4dgt), 20A+(2.0%rdg+4dgt) | |
| ACA | ||
| Range: | :20mA, 200mA, 20mA | |
| Resolution | : 10mA, 100mA,10mA | |
| Accuracy | :2m ~ 200 ma+(1.5%rdg+8dgt), 20A+(2.0%rdg+8dgt) | |
| OHM | ||
| Range: | : 200W, 2kW,20kW,2MW,20MW | |
| Resolution | : 0.1W ~ 10kW | |
| Accuracy | : 200W ~ 200kW+(0.8%rdg+4dgt), 2MW+(1.0%rdg+4dgt),20MW+(3.0%rdg+4dgt) | |
| Dimensions | 162(L) x 76(W) x 32(H) mm | |
| Weight | 400 g | |
 |
 |
