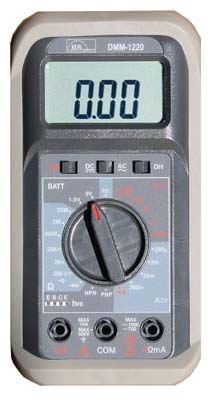

Digital Multimeter: DMM-1220

Features

  • 3-1/2 digit big LCD
  • Data Hold.
  • Perfect inner circuit protection with fuses and diodes
  • Continuity test (BUZZER) with resolution 0.1 W
  • AC / DC 10 ranges with 10A fuse protection
  • Transistor (hFE) and diode and battery test.
  • Autoranging frequency measurements 1~20Mhz with sensitivity 0.3Vrms.
  • Includes protective holster, test leads.

DC VOLTAGE
Ranges 5(200mV/2V/20V/200V/1000V)
Resolution 0.1mV/1mV/10mV/100mV/1V
Accuracy + (0.8%rdg+1dgt)
Protection 200mV : DC500V/AC350Vrms
2V~1000V : DC1000V/AC750Vrms
Impedance

10M W

DC CURRENT
Ranges 5(200 µ A / 2mA / 20mA / 200mA / 10A)
Resolution 0.1mA/1 mA/ 10 ma/0.1 ma/10 ma
Accuracy 200 m A ~ 200mA : + (1 % rdg + 1 dgt)
10A : + (2 % rdg + 1 dgt)
Protection

200 m A ~ 200mA : 0.5A fuse & diodes
10A : 10A fuse

RESISTANCE
Range 6(200 / 2K / 20K / 200K / 2M / 20M W)
Resolution 0.1/1/10/100/1K/10 K W
Accuracy 200W : + (1.2%rg + 2dgts)
2K - 2M W : + (1.0%rdg + 2dgts)
20M Ohms : + (2.0%rdg + 4dgts)
Protection AC / DE 500Vrms

Battery Test (BATT)
Ranges 1.5V/ 9V
Resolution 1mV/10mV
Load Current 150 ma for 1.5V; 6 ma for 9V
Load Resistance 10 W for 1.5V; 1.5kW for 9V


CONTINUITY BEEPER
CONTINUITY BEEPER <30 W
Protection AC / DC 500V



AC VOLTAGE
Ranges 5(200mV / 2V / 20V / 200V / 750V)
Resolution 0.1V / 1mV / 10mV / 100mV / 1V
Accuracy 200mV - 200V : + (1.2%rdg+3dgts)
750V : + (1.5% rdg+3dgts)
Protection 200mV : DC500V / AC350Vrms
2V ~ 1000V : DC100V/AC750 Vrms
Impedance

210 M W

AC CURRENT
Ranges 5(200 µ A / 2mA / 20mA / 200mA /10A)
Resolution 0.1mA/1 ma/ 10 ma/0.1 ma/10 ma
Accuracy

200 m A ~ 200mA : + (1.5% rdg + 5dgt)
10A : + (2.5% rdg + 3dgt)
Protection 200 m A ~ 200mA: 0.5A fuse & diodes
10A : 10A fuse

DIODE TEST
Resolution 1mV
Test Current 1mA
Protection AC/DC 500V

FREQUENCY (Hz)
Ranges 5(2 KHz/20 kHz/200 kHz/2 MHz/20 MHz)
Accuracy +(0.5 % rdg + 2 dgts)
Sensitivity 0.3Vrms Minimum
Protection AC/DC 500 V

GENERAL
Weight: 355 g
Dimensions: 153mm x 74mm x 45mm
