Logic Analyzers: | LA-17250| LA-17500 |

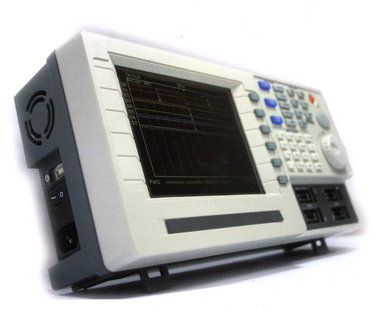

| Logic Analyzer: LA-17250 |
|
Features:
1. External (synchronous) and internal (asynchronous) capture: offer a more convenient environment for engineers.
2. Provide three sets of searching data functions and six cursor marks. The timing of each trigger point can be shown by the cursor mark.
3. Display: Binary code and Hexadecimal mode
4. Able to save measuring data and waveform results in the stand-alone mode.
5. Offer I2C, SPI, UART, and CAN signal decoding functions in the PC mode.
6. Provide various signal trigger and capture 4 different trigger modes including Pattern/Edge/And/Or.
7. Pre-trigger, post-trigger, 3 level trigger, continuous trigger.
8. Bus analysis and glitch capture functions: 2MB ~ 4MB memory depth. Each CH memory depth is up to 512 KB ~ 1MB
9. Provide "Trigger counter" and "Pulse Wide Trigger" functions.
10. High speed zoom in / zoom out techniques.
11. Adjustable sample rates can be set by users. It avoids long capturing time.
12. Smart software provides text file for saving the Binary code of waveform results.
13. Compact, portable design.
14. 5.6" TFTcolor LCD display
15. USB 2.0 interface
Specifications:
| Timing Analysis | 250 MHz |
| State Analysis | 200 MHz |
| Bandwidth | 200 MHz |
| Channels | 32 CHs |
| RAM Size | 2 MB |
| Storage Depth per CH | 512KB x 32 CH |
| Max Input Voltage | ?15V |
| Threshold Range | -4V ~ +4V |
| Data Skew | 4 ns typical (? ns Max) |
| Trigger Mode | Pattern/ Edge/ And/ Or |
| Trigger Counter | 1 ~ 255 |
| Pulse Width Trigger | Yes |
| Glitch Capture | 4 ns |
| Interface | USB 2.0 |
| Power Source | 110VAC ~ 240VAC |
| Frequency Range | 50 ~ 60 Hz |
| Power Consumption | 18W |
| Operating Temperature | 0 ~ 45 °C |
| Dimensions | 12.25" x 5.90" x 3.54" 31cm x 15 cm x 9 cm |
| Weight | 8.36 lbs/ 3.8 Kgs |
Supported PC operating Systems: Windows 98/ 2000/ XP/ Vista32
 |
 |
