Features:

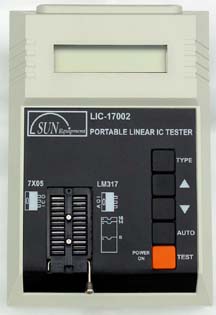

1. Easy operation IC tester.

2. Small, portable, light, and power-saving design.

3. 0.8 sec average search time.

4. Display: 16 characters in 1 line.

5. Test pins: 8 ~ 16pins.

6. Tester voltage: +/- 5V

7. Equipped with empty-load test and auto power off function.

8. Supported devices: OP, Comparator, OPTO, REG., Transistor array.

Supported Devices :

OP ( OPERATIONAL AMPLIFIERS, COMPARATORS )

OPERATIONAL AMPLIFIERS :

LM101, LM310, TL022, LF347, UA741, LM107, LM318, TL061, LF351, UA747 LM108 LM324 TL062 LF353 UA748 LM118, LM348, TL064, LF355, OP07, LM124, LM358, TL071, LF356, OP27, LM148, LM1458, TL072, LF357, OP37, LM158, LM2900, TL074, LF411, OP42, LM201, LM2902, TL081, LF412, OP90, LM207, LM2904, TL082, ICL7611, OP97, LM208, LM3900, TL084, ICL7621, OP290, LM218, LMC660, TL094, ICL7641, OP490, LM224, CA358, MC3303, ICL7642, TLC252, LM248, CA3130, MC3403, AD648, TLC272, LM258, CA3140, MC3503, AD711, LP124, LM301, CA3160, MC34004, D712, LP324, LM307, CA3240, NE5532, LT1013, HA17324, LM308, CA3260, NE5534, LT1014, UPC451, RC4558, C4082

COMPARATORS :

LM139, LM193, LM239, LM293, LM339, LM393, LM2901, LM2903, LM3302, LP239, LP339, LP2901, TLC339, TLC393,

OPTO ( OPTOCOUPLERS ) :

4N25, 4N26, 4N27, 4N28, 4N29, 4N32, 4N33, 4N35, 4N36, 4N37, 4N38, 4N45, 4N46, TIL111, TIL116, H11A1, H11B1, H11D1, H11D2, H11D3, H11D4, CNY75, MCT2, PC817, PC827, PC837, PC847, K827P, K847P,

REG. ( VOL TAGE REGULATORS ) :

mA7805... ( LM2930 - 5.0, LM2931 - 50, LM2940CT - 5.0 )

mA7806... ( need to use DC adaptor )

mA7905, LM217, LM317

SPECIAL FUNCTIONS DEVICE

NE555, NE556, TLC555, TLC556, 4016, 4066, 723

TRANSISTOR ARRAY

ULN2001, ULN2003, ULN2004, ULN2005

Standard Accessories:

1. Main unit.

2. DC 9V/500mA power adapter.

3. Operation manual.

Specifications:

1. Dimensions: 16 x 11 x 4.5 (cm)

2. Weight: 0.34 kg

3. Temperature: +5°C to +45°C

4. Humidity: to 90% noncondensing

5. Altitude: to 5000 m.
