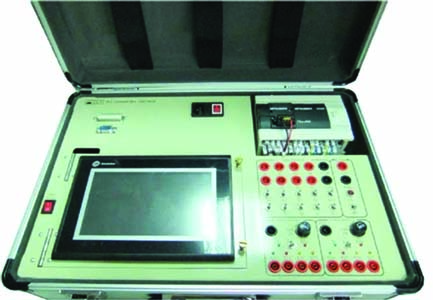

Specifications:
PLC: FX3G-40MT
Power Supply: 100-240VAC. 2A Fuse Protection.
Input Interface: 10 inputs, dual insulated binding posts and toggle switches. Light coupling protection interface.
Output Interface: 16 outputs, dual insulated binding posts, solid state transistor and relay switching. Fuse short circuit protection.
Display: 64K full color 7.4" LCD touch screen.
LED Backlight: 70,000 Hours
RAM: 128 MB Flash Memory
Communication Ports:

• a. COM1: RS-232/422/485
• b. COM2: RS-232/422/485
• c. COM3: RS-232
• d. USB: USB Host
• e. USB: USB Slave

Expansion Memory Port: SD Slot (16GB Max.)

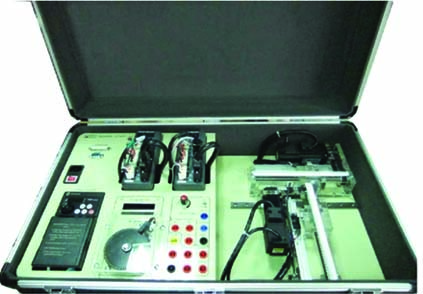

Compact PLC Control Load Unit: PLC-1011

Specifications:
Power Supply: 100-240 VAC, 2A Fuse Protection
Positioning Control Mechanism:
1) Servo Motor:

• a. Capacity: 100W
• b. Encoder Accuracy: 2500PPR
• c. Feedback Accuracy: 10,000PPR
• d. Input Bandwidth: Differential: 500KPPS, Open Collector: 200KPPSe.

Communications: RS-232/485
2) Mechanism:

• a. Acrylic structure
• b. Attached position scale
• c. Left and right limit and origin signal
• d. Uniaxial independent control or biaxial linked control

Inverter Motor System:
1) Inverter:

• a. Single-phase, 220V，0.5Hp
• b. 0.1 ~ 650Hz Output frequency
• c. Built-in RS-485 communication

2) Inverter Motor:

• a. Three-phase AC220V, 1800RPM with rotating indicator.

3) Tachometer:

• a. 1 ~ 9999RPM Counter
• b. Built-in RS485 communication
